1999 Kitamura MYCENTER-HX250 (Horizontal Machining Center)

1999 Kitamura MYCENTER-HX250

Horizontal Machining Center

Control: Yasnac i80 MB

X Axis Travel: 12″

Y Axis Travel: 12″

Z Axis Travel: 13″

Number of Pallets: 2

Pallet Size: 10″ x 10″

Pallet Index: 360.000 DEG

Spindle Taper: BT 30

Spindle Speed: 15,000 RPM

Tool Capacity: 24 ATC

Machine Dimensions: 112″L x 65″W x 78″H

Machine Weight: 9,100 LBS

-EQUIPPED WITH-

Coolant Thru Spindle (220 psi)

Full 4th Axis

Caterpillar Type Chip Conveyor

2 Station APC Front Mount

Additional M Function 4 Sets

Fully Enclose Splash Guards

Rigid Tapping

1574 IPM Rapids on X, Y, Z

Shower Coolant

320 M Memory

54 pcs. Work Coordinate Offsets

99 pcs. Tool Offsets

Coordinate System Rotation

Automatic Corner Override

Helical Interpolation

Single Direction Positioning

User Macro 110 Variables

GHSC Hi-Feed Function

More Info: http://ift.tt/1m2ES7K

from WordPress http://ift.tt/1nWVUSb

via IFTTT

2003 Euromac MTX 1250/30 (CNC Turret Punch)

2003 Euromac MTX 1250/30

CNC Turret Punch

Control: PC Based

Max Ram Capacity: 30 Tons

Max Ram Speed: 730 SPM

X Axis Travel: 78″

Y Axis Travel: 49″

Table Size: 87″ x 157″

Max Weight of Work Sheet: 175 LBS

Number of Turret Stations: 5

-EQUIPPED WITH-

Multi Tool Type Turret Stations

Extra Tooling

More Info: http://ift.tt/1qQfi9C

from WordPress http://ift.tt/1qBOzv1

via IFTTT

2006 Toolmex TUR 630 MN 4000 (CNC Engine Lathe)

2006 Toolmex TUR 630 MN 4000

CNC Engine Lathe

Control: Siemens 810D

Swing Over Bed: 25″

Swing Over Cross Slide: 14.6″

Distance Between Centers: 157″

Max Weight Between Centers: 3,300 LBS

Spindle Speeds: 20 – 1,800 rpm

Spindle Bore: 5.5″

Spindle Motor: 25 hp

Spindle Nose: D-11

Tailstock Taper: MT 5

-EQUIPPED WITH-

Front & Rear 16″ 4-Jaw Chucks

Dorian DA Type Tool Post

More Info: http://ift.tt/1qeGaA6

from WordPress http://ift.tt/1jR11lr

via IFTTT

Mitsubishi DWC110H (CNC Wire Type EDM)

Mitsubishi DWC110H

CNC Wire Type EDM

Year of Make: 1986

Control: Mitsubishi

X Axis Travel: 11.8″

Y Axis Travel: 17.7″

Table Size: 25.59″ x 23.62″

Maximum Workpiece Dimensions: 21.65″ x 23.62″ x 10.24″

Maximum Workpiece Weight: 1433 lbs

Rapid Traverse: 51.18 ipm

Wire Diameter Capability: 0.004″ – 0.013″

Taper Capacity: +/- 12 Deg. in 4″

Table Resolution: .000004″

Maximum Amperage: 50 Amps

Floor space requirement: 100″ x 120″

Approximate Machine Weight: 6300 lbs

**TWO IDENTICAL MODELS AVAILABLE**

More Info: http://ift.tt/1kLFb2d

from WordPress http://ift.tt/1pGAQVL

via IFTTT

1997 Mazak MAZATECH ULTRA650 (Horizontal Machining Center)

1997 Mazak MAZATECH ULTRA650

Horizontal Machining Center

Control: Mazatrol M-Plus

X Axis Travel: 40″

Y Axis Travel: 31.5″

Z Axis Travel: 31″

Number of Pallets: 2

Pallet Size: 24.8″ x 24.8″

Pallet Index: .001 DEG

Spindle Speed: 7,000 RPM

Spindle Taper: 50

Spindle Motor: 35 HP

Tool Capacity: 80 ATC

-EQUIPPED WITH-

Full 4th Axis

Consep “Dual Belt” Chip Conveyor

More Info: http://ift.tt/1uBn9oX

from WordPress http://ift.tt/1qpwNgx

via IFTTT

1997 Mazak MAZATECH ULTRA650 (Horizontal Machining Center)

1997 Mazak MAZATECH ULTRA650

Horizontal Machining Center

Control: Mazatrol M-Plus

X Axis Travel: 40″

Y Axis Travel: 31.5″

Z Axis Travel: 31″

Number of Pallets: 2

Pallet Size: 24.8″ x 24.8″

Pallet Index: .001 DEG

Spindle Speed: 7,000 RPM

Spindle Taper: 50

Spindle Motor: 35 HP

Tool Capacity: 80 ATC

-EQUIPPED WITH-

Full 4th Axis

Consep “Dual Belt” Chip Conveyor

More Info: http://ift.tt/1uBn9oX

from WordPress http://ift.tt/1pdS4YN

via IFTTT

1996 Heckert CWK 400 (Horizontal Machining Center)

1996 Heckert CWK 400

Horizontal Machining Center

Control: Siemens SINUMERIK 840

X Axis Travel: 25″

Y Axis Travel: 19.6″

Z Axis Travel: 25.9″

Number of Pallets: 2

Pallet Size: 15″ x 15″

Spindle Taper: CAT 40

Spindle Speed: 8,000 RPM

Tool Capacity: 60 ATC

-EQUIPPED WITH-

Thru Spindle Coolant

(2) Tombstones

More Info: http://ift.tt/TPQosW

from WordPress http://ift.tt/1kRUOtH

via IFTTT

1976 Sundstrand V12 (CNC Vertical Turret Lathe)

1976 Sundstrand V12

CNC Vertical Turret Lathe

Control: Fanuc 18-T

Maximum Swing: 63″

Maximum Turning Diameter: 55″

Height Under Rail: 41.5″

Vertical Ram Travel: 31″

Horizontal Rail Travel: 37″

Travel Below Saddle: 22″

Rapids: 300 IPM

Cross Rail Motor: 5 HP

Table Motor: 50 HP

Table Speed: 3.3 – 295 RPM

-EQUIPPED WITH-

46″Table Mounted With 60″ Faceplate

5 Station Turret

Table Guards

***Retrofit To Fanuc Control Done 1994***

More Info: http://ift.tt/1kZnmRM

from WordPress http://ift.tt/1uNIQ7i

via IFTTT

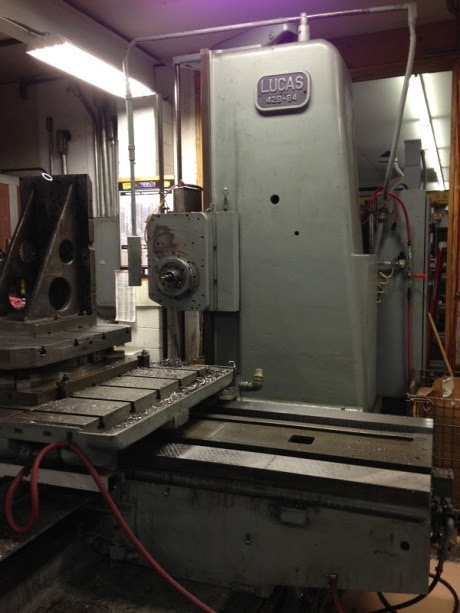

1961 Lucas 42B-84 (Horizontal Boring Mill, Table Type)

1961 Lucas 42B-84

Horizontal Boring Mill, Table Type

Diameter of spindle: 4″

Taper in spindle: #6 Morse

Spindle traverse: 36″

Headstock, vertical travel: 72″

Table working surface: 48″ x 86″

Table cross travel: 72″

Bed length: 96″

Bed width across ways: 84″

Saddle travel: 72″

Saddle length: 132″

(26) Spindle speeds in three ranges: 9-1,200 R.P.M.

(81) Spindle feeds: .0001-1.038 I.P.R.

Spindle Drive Motor: 20 HP

Maximum weight capacity on table: 17 ton

Approximate Weight: 42,600 Lbs.

Approximate Dimensions: 137″ L-R x 222″ F-B x 142″ High
