Control: Mitsubishi LC20T
Resenator Output: 3,600 WATTS
X Axis Travel: 79.92″
Y Axis Travel: 59.84″
Z Axis Travel: 23.62″
W Axis: 360 DEG
U Axis: 180 DEG
Table Size: 64″ x 84″
Table Load: 2,090 LBS
C02 Mitsubishi Model 5036D Resenator
Pendant Control
Accu Chiller Thermocare LX Series Chiller
***5665 Hours on Resonator***
More Info: http://ift.tt/1nhvaPw
Control: MITSUBISHI MSG805
X Axis Travel: 24″
Y Axis Travel: 20.1″
Z Axis Travel: 18.1″
Number of Pallets: 2
Pallets Size: 29.5″ × 21.7″
Pallets Load Capacity: 660 LBS
Spindle Taper: BT-40
Spindle Speed: 12,000 RPM
Tools Capacity: 30 ATC
Machine Dimensions: 157″L x 88″W x 114″H
Machine Weight: 22,500 LBS
Thru Spindle Coolant
Twin Pallet Changer
Yukiwa Seiki AC2-10 Indexer
Chip Conveyor
**Two Identical Machines Available**
More Info: http://ift.tt/1zXDVnQ
Vertical Machining Center
Control: Yasnac MX-3
X Axis Travel: 30″
Y Axis Travel: 16″
Z Axis Travel: 19″
Table Size: 45.3″ x 16.1″
Table Load Capacity: 1,100 LBS
Spindle Speed: 6,000 RPM
Spindle Taper: #40
Spindle Motor: 15 HP
Tools Capacity: 30 ATC
Machine Dimensions: 120″L x 118″W x 106″H
Machine Weight: 11,000 LBS
-EQUIPPED WITH-
4th Axis Pre Wire
Full Enclosure
Heavy Duty Box Way Construction
More Info: http://ift.tt/1yxapne
2012 Mori Seiki NLX2500SY
CNC Turning Center
Control: MSX-853IV
Max Turning Diameter: 14.4″
Max cutting Length: 20″
Bar Capacity: 2.55″
X Axis Travel: 10.2″
Z Axis Travel: 23.2″
Y Axis Travel: 3.9″ +/- 2″
B Axis Travel: 24.6″
Main Spindle Speed: 5,000 RPM
Sub Spindle Speed: 6,000 RPM
Rotary Tools Spindle Speed: 6,000 RPM
Number of Turret Stations: 12
-EQUIPPED WITH-
LNS Chip Conveyor
Parts Catcher
(2) Axial Live Tools
(2) Radial Live Tools
More Info: http://ift.tt/1r93QpO
2012 Mori Seiki DURA VERTICAL 5100
Vertical Machining Center
Control: MSX-504 IV
X Axis Travel: 41.3″
Y Axis Travel: 20.9″
Z Axis Travel: 20.1″
Table Size: 53.1″ x 23.6″
Table Max Weight: 2,200 LBS
Spindle Taper: BT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 20 HP
Tool Capacity: 30 ATC
Machine Dimensions: 75″W x 91″L x 105″H
Machine Weight: 14,100 LBS
-EQUIPPED WITH-
High Speed Spindle
Thru Spindle Coolant
Chip Conveyor
AI Contour Control I
Reinshaw Probe
Signal Tower
More Info: http://ift.tt/1y9p8Vf
2004 Mazak QUICK TURN NEXUS 250
CNC Turning Center
Control: Mazatrol 640T (Fusion PC)
Turning Diameter: 13.78″
Turning Length: 18.73″
Maximum Swing: 24.02″
Travels: (X) 7.5″, (Y) 20.25″
Rapid Travels: (X)1181 IPM, (Z)1299 IPM
Bar Capacity: 3″
Spindle Bore: 3.14″
Spindle Nose: A2-8
Spindle Motor: 30 HP
Spindle Speed: 35 – 4000 RPM
Turret Tool Capacity: 12 Tools
-EQUIPPED WITH-
Parts Catcher
Tool Presetter w/Air Blow
10” 3-Jaw Kitagawa Chuck
4 Extra Boring Bars
Chip Conveyor
More Info: http://ift.tt/1mcN7yn
1993 Hurco BMC-40
Vertical Machining Center
Control: Ultimax 3
X Axis Travel: 40″
Y Axis Travel: 30″
Z Axis Travel: 22″
Table Size: 57.7″ x 34.3″
Working Surface: 51.2″ x 27.6″
Max Work Load: 3,300 LBS
Spindle Motor: 10 HP
Spindle Speed: 4,000 RPM
Spindle Taper: CAT 40
Tool Changer Capacity: 30 ATC
Machine Dimensions: 130.7″ x 152″ x 109.3″
Machine Weight: 17,600 LBS
More Info: http://ift.tt/1rp22sB
1993 Hurco BMC-40
Vertical Machining Center
Control: Ultimax 3
X Axis Travel: 40″
Y Axis Travel: 30″
Z Axis Travel: 22″
Table Size: 57.7″ x 34.3″
Working Surface: 51.2″ x 27.6″
Max Work Load: 3,300 LBS
Spindle Motor: 10 HP
Spindle Speed: 4,000 RPM
Spindle Taper: CAT 40
Tool Changer Capacity: 30 ATC
Machine Dimensions: 130.7″ x 152″ x 109.3″
Machine Weight: 17,600 LBS
More Info: http://ift.tt/1rp22sB

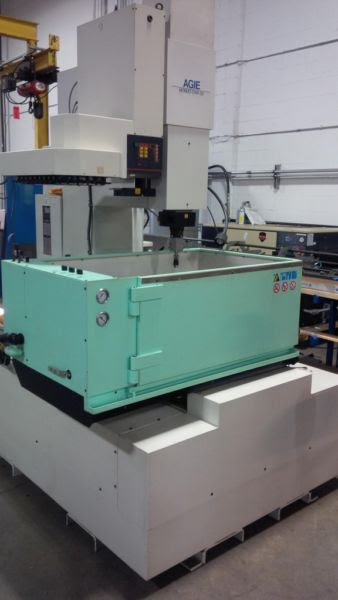

2000 Agie MONDO STAR 50
CNC Die Sinker EDM
Control: FUTURA V
X Axis Travel: 19.6″
Y Axis Travel: 13.7″
Z Axis Travel: 13.7″
Traverse Speed (all axis): 37 IPM
Table Size: 29.5″ x 21.6″
Max Work Piece Size: 38″ x 25.5″ x 12.4″
Max Work Piece Weight: 1,100 LBS
Internal Tank Size: 40.1” X 26.7” X 15.7”
Max Electrode Weight: 220 LBS
Increment: 0.0001″
Resolution: 0.0000025” (1/16 MICRON)
Tank Capacity: 140 GAL
Peak Current: 120 AMPS
Average Current: 100 AMPS
Tool Capacity: 32 ATC
-EQUIPPED WITH-
Macro Controller
Extra 3R Tool Holders
2 Drums Fuchs Ecocut 30
Paper Cartrige Filters
More Info: http://ift.tt/V7faW9
