1989 Okamoto ACC-124DX (Surface Grinder)

1989 Okamoto ACC-124DX

Surface Grinder

Wheel Dimensions: 12″ x 2″ x 5″
Maximum Height Under Wheel: 13.6″
Maximum Grinding Diameter: 12″
Maximum Grinding Length: 24″
Table Feed Rates: 0 – 82 FPM infinitely variable
X Axis Travel – Longitudinal: 30″
Y-Axis (Cross Travel): 13.4″
Auto Continuous Crossfeed: 4 – 40 FPM
Auto Crossfeed Increment: .002″ – .80″
Cross Feed on Handwheel: 0.25″
Graduation of Handwheel: .001″
Auto Incremental Downfeed: .00005″ – .0015″
Power Rapid Wheel Positioning Rate: 16 IPM
Spindle Motor: 5 HP
Machine Dimensions: 108″ x 76″ x 70″
Machine Weight: 5,500 lbs.

-EQUIPPED WITH-

DX4B Control
Incremental Downfeed
Coolant System

**METRIC MACHINE SIMILAR TO PSG-63DX**

More Info: http://ift.tt/1LrC1Vo

from WordPress http://ift.tt/1oU4Ik6
via IFTTT

1971 Wotan B105M (Table Type Horizontal Boring Mill)

1971 Wotan B105M

Table Type Horizontal Boring Mill

X Axis Travel: 56.6″
Y Axis Travel: 48.2″
Z Axis Travel: 62″
Quill Travel: 10.25″
Table Size: 44″ x 44″
Table Load: 8,820 LBS
Spindle Diameter: 4.125″
Spindle Taper: NMTB 50
Spindle Speeds: 14 – 1,200 RPM
Spindle Motor: 15 HP
Machine Weight: 32,000 LBS

-EQUIPPED WITH-

Rotary Table
Heidenhain VRZ769B Control
Heidenhain Scales
DirectSoft PLC Touchscreen

More Info: http://ift.tt/1S7dhDa

from WordPress http://ift.tt/1S7dkid
via IFTTT

1988 Mori Seiki MV-40B (Vertical Machining Center)

1988 Mori Seiki MV-40B

Vertical Machining Center

Control: Yasnac MX-3
X Axis Travel: 31.5″
Y Axis Travel: 16.1″
Z Axis Travel: 20.0″
Table Size: 43.3″ x 17.7″
Table Load Capacity: 1540 LBS
Spindle Taper: BT-40
Spindle Speed: 8,000 RPM
Spindle Motor: 10 HP
Tool Changer Capacity: 20 ATC
Machine Dimensions: 110″L x 87″W x 106″H
Machine Weight: 12,000 LBS

More Info: http://ift.tt/1PXlqr2

FOR ALL SURPLUS CNC…………….SURPLUSCNC.COM

from WordPress http://ift.tt/1PXloQ6
via IFTTT

1991 Hitachi Seiki HT 20SII (CNC Turning Center)

1991 Hitachi Seiki HT 20SII

CNC Turning Center

Control: Seikos Multi L
Max. Swing: 18″
Max. Turn Dia: 8.26″
Max. Turn Length: 15″
X-Axis Travel: 7.9″
Z-Axis Travel: 15.7″
Spindle Nose: A2-6
Bar Capacity: 2″
Spindle Bore: 2.3″
Spindle Motor: 20 HP
Spindle Speed: 5,000 RPM
Turret Positions: 12
Rapids ( X /Z): 984/1181 IPM
Weight (Approx): 9,000 Lbs.
Approximate Floor Space: 89″ x 65″ x 67″

-EQUIPPED WITH-

Tool Pre-setter
Tailstock

More Info: http://ift.tt/1TvsbE8

FOR ALL SURPLUS CNC………………….SURPLSUCNC.COM

from WordPress http://ift.tt/1Q6y8oW
via IFTTT

1991 Mazak QUICK TURN 15N (CNC Turning Center)

1991 Mazak QUICK TURN 15N

CNC Turning Center

Control: MAZATROL T32-2
Max Swing Over Bed: 17.32″
Max Swing Over Cross: 10″
Max Machining Diameter: 11.82″
Z Axis Stroke: 20.08″
Spindle Hole: 2.01″
Spindle Motor: 20 HP
Spindle Speeds: 45 – 4,500 RPM
Number of Turret Stations: 8
Tailstock Taper: MT4
Machine Dimensions: 90″L x 65″W x 75″H
Machine Weight: 9,300 LBS

-EQUIPPED WITH-

Kitagowa 8” Hydraulic Chuck
8 Station Turret
SMW 12’ Bar Feed
Chip Conveyor

More Info: http://ift.tt/1KvKQxe

FOR ALL SURPLUS CNC……………….SURPLUSCNC.COM

from WordPress http://ift.tt/1RcG1rQ
via IFTTT

1997 Komatsu L2M300-3BM (Straight Side Power Press)

1997 Komatsu L2M300-3BM

Straight Side Power Press

Maximum Capacity: 300 ton
Ram Speed: 50 – 120 SPM
Slide Stroke: 125mm 4.92”
Die Height: (SDAU) 550mm 21.65”
Slide Adjustment: 100mm 3.94”
Slide Dimensions: (LRxFB) 2150x900mm 84.6×35.4”
Bolster Dimensions: (LRxFBxThicness) 2150x1000x250mm 84.6×39.3×9.8”
Allowable Upper Die Weight: 3307lbs

-EQUIPPED WITH-

AUTOMATOR II METAL STAMPING PRESS AUTOMATION CONTROL:

• 15″ color touch screen
• Standard 8 programmable inputs (up to 56 optional)
• Standard 8 Programmable Outputs (up to 32 optional)
• Versatile Rack System
• Field Upgradable; add options now or later
• On Screen Diagnostics
• Heavy duty industrial Resolver

CWP Feed Line Specs:

Straightener:
Model: COILPAK-30
Max Coil WT. 6000lbs
Max Coil O.D. 60”
STK. Width: 30”
STK. THK. IN MILD STEEL: 0.021-0.125”
Speed: 50 FPM
Power: 230VAC, 1P, 60hz
Machine Direction: R-L

Feeder:
Model: SMX SE1130
STK. Width: 30

More Info: http://ift.tt/1TphUIw

from WordPress http://ift.tt/1TphWQD
via IFTTT

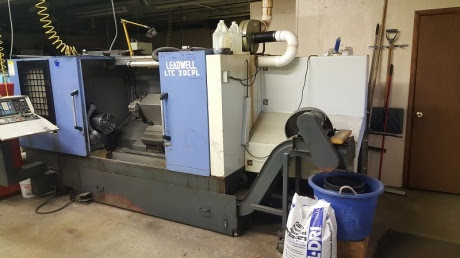

1995 Leadwell LTC 20CPL (CNC Turning Center)

1995 Leadwell LTC 20CPL

CNC Turning Center

Control: Fanuc O-T
Max Swing: 20.9″
Max Turning Diameter: 14.5″
Max Turning Length: 36.2″
Bar Capacity: 2.5″
Spindle Speed: 3,000 RPM
Spindle Nose: A2-6
Spindle Motor: 20 HP
Turret Capacity: 8 Station
Machine Dimensions: 127″L x 86″W x 73″H
Machine Weight: 10,600 Lbs

-EQUIPPED WITH-

10″ 3-Jaw Chuck
Tailstock
Tool Presetter
Chip Conveyor

More Info: http://ift.tt/20GHN75

FOR ALL SURPLUS CNC…………………SURPLUSCNC.COM

from WordPress http://ift.tt/20GHN79
via IFTTT

2005 Citizen CINCOM A16 VIP (CNC Swiss Type Turning Center)

2005 Citizen CINCOM A16 VIP

CNC Swiss Type Turning Center

Control: Fanuc 0i-TB
Max. Machining Diameter: .63″
Max. Machining Length, w/Rotary Guide Bushing Device: 5.31″/2.24″
Max. Front Drilling Diameter: .24″
Max. Front Tapping Size (w/tap & die): M6
Spindle Through-hole Diameter: .79″
Max. Spindle Speed: 10,000 RPM
w/Rotary Guide Bushing Device: 6,000 RPM
Max. Drilling Diameter: .2″
Rotary Spindle Speed: 4,500 RPM
Max. Chuck Diameter – Back Spindle: .63″
Max. Workpiece Length, Front Side from Back Spindle: 3.15″
Max. Tapping Diameter, in Back Machining Process: M3
Back Spindle Speed: 6,000 RPM
# of Tools to be Mounted: 16
Turning Tools on Gang Tool Post: 5
Rotary Tools on Gang Tool Post: 3
Tools for Front Spindle: 4
Tools for Back Spindle: 4
Gang Tool Post (tool): .39″
Main Spindle: 2.2/3.7 KW
Center Height: 39.37″

-EQUIPPED WITH-

Long Part Option
Live Tool Option
FMB Minimag 20 (new 2013)
Extra Misc Tools

More Info: http://ift.tt/1Tht4Py

FOR ALL SURPLUS CNC……………….SURPLUSCNC.COM

from WordPress http://ift.tt/1Tht4PA
via IFTTT

2006 Nicolas Correa EURO 2000 (Bridge Type VMC)

2006 Nicolas Correa EURO 2000

Bridge Type VMC

Control: Heidehain iTNC 530
X axis travel: 78″
Y axis travel: 49″
Z axis travel: 26″
Distance between columns: 14″
Table size: (Sub-plate included): 90.75″ x 44″ x 1.75″
Table Load Max: 5,500 LBS
Spindle Taper: HSK63
Spindle Speeds: 18,000 RPM
Tool Changer Capacity: 24 ATC

-EQUIPPED WITH-

New Siemens drives x 2 (2014)
New Heidenhain hard drive
New motor for fan (air condition unit)
New Bearings for the doors
Dead man’s switch, for safety compliance
New X axis guards
Spindle repair
New ball screw x axis
New bearings for ball screw
Interior lighting upgraded to DEL
Addition of oil mist collector
Upgrade to coolant tank
$50,000.00 of upgrades and repairs since 2014
Mist Tool holders
Sub plate
Spare Kesler spindle (Needs rebuilding)
Power transformer (575V)
Machine manuals

*Machine is in perfect condition*

More Info: http://ift.tt/240cdpp

FOR ALL SURPLUS CNC………………..SURPLUSCNC.COM

from WordPress http://ift.tt/20rFepr
via IFTTT

2007 DMTG Ingersoll CKE6156Z (CNC Engine Lathe)

2007 DMTG Ingersoll CKE6156Z

CNC Engine Lathe

Control: Fanuc 0iTC
Swing Over Bed: 21″
Swing Over Cross Slide: 12.99″
Distance Between Centers: 80″
Spindle Speeds: 7 – 2,200 RPM
Spindle Bore: 3.228″
Spindle Motor: 10 HP
Spindle Nose: D1-8
X-Axis Travel: 12″
Z-Axis Travel: 75.98″
Tailstock Quill Stroke: 5.91″
Tailstock Quill Diameter: 2.95″

-EQUIPPED WITH-

4-Way Tool Post
16″ 3-Jaw Tru-Adjust Chuck
Steady Rest
Follow Rest

More Info: http://ift.tt/1oq7TPG

FOR ALL SURPLUS CNC………………..SURPLUSCNC.COM

from WordPress http://ift.tt/1Q6fqJx
via IFTTT

1994 Nardini ND 1540E NODUS (Manual Tool Room Lathe)

1994 Nardini ND 1540E NODUS

Manual Tool Room Lathe

Swing Over Bed: 16″
Swing Over Cross Slide: 9″
Swing In Gap: 23″
Distance Between Centers: 40″
Cross Slide Travel: 10″
Top Slide Travel: 6.5″
Spindle Bore: 2″
Spindle Nose: D1-5″
Spindle Speeds: (18) 25 to 2000 RPM
Tailstock Quill Diameter: 2-3/8″
Tailstock Taper: No. 3 MT
Tailstock Quill Travel: 9″
Number of Threads: 216
Metric Threads: (54) .40 to 18.492
Inch Threads: (54) 2-3/4–42 TPI
Module Threads: (54) .20 to 3.5
Diametral Pitch Threads: (54) 3 to 84
Pitch Of Leadscrew: 4 TPI
Number of Feeds: 192
Longitudinal Feeds, Inch: (132) 0.0033 to 0.0406in/rev
Cross Feeds, Inch: 0.008 to 0.0258 in/rev
Approximate Weight: 2850 Lbs.

-EQUIPPED WITH-

6 HP Motor 3PH 220V
Hardened Bed Ways: HB412 min, 514 max
8″ 3-Jaw Chuck
8″ 4-Jaw Chuck
Taper Attachment
Thread Dial
Splash Guard, Chip Pan, Coolant System
Steady Rest
Follow Rest
With DRO: NEWALL (Topaz) (British made) 110V
Tool Post
Work Light 110V

More Info: http://ift.tt/1PjbIz5

from WordPress http://ift.tt/1PjbEiL
via IFTTT

1981 Okamoto ACCUGAR 124N (Surface Grinder)

1981 Okamoto ACCUGAR 124N

Surface Grinder

Maximum grinding length: 24″
Maximum grinding width: 12″
Magnetic Chuck Size:: 12″ x 24″
Maximum longitudinal Travel: 27.75″
Maximum cross Travel: 12″
Grinding wheel Size: 12″Dia x 1.5″W x 3″Hole
Grinding Wheel Speed: 1,800 RPM
Grinding Wheel Motor: 5 HP
Approximate Weight: 5,000 LBS

More Info: http://ift.tt/1odAish

from WordPress http://ift.tt/1odAkAp
via IFTTT

1948 Cincinnati HYDRO-TEL 16 SERIES (Manual Vertical Tracing Mill)

1948 Cincinnati HYDRO-TEL 16 SERIES

Manual Vertical Tracing Mill

Make: Cincinnati Milling Machines
Year of Make: 1948
Serial Number: 3H1V10-31
Vertical Spindle Head Travel: 16″
Type of Mill: Vertical with tracing head

More Info: http://ift.tt/1VRBrjQ
